Nav2 pt2 Adding Odometry

What is odometry?

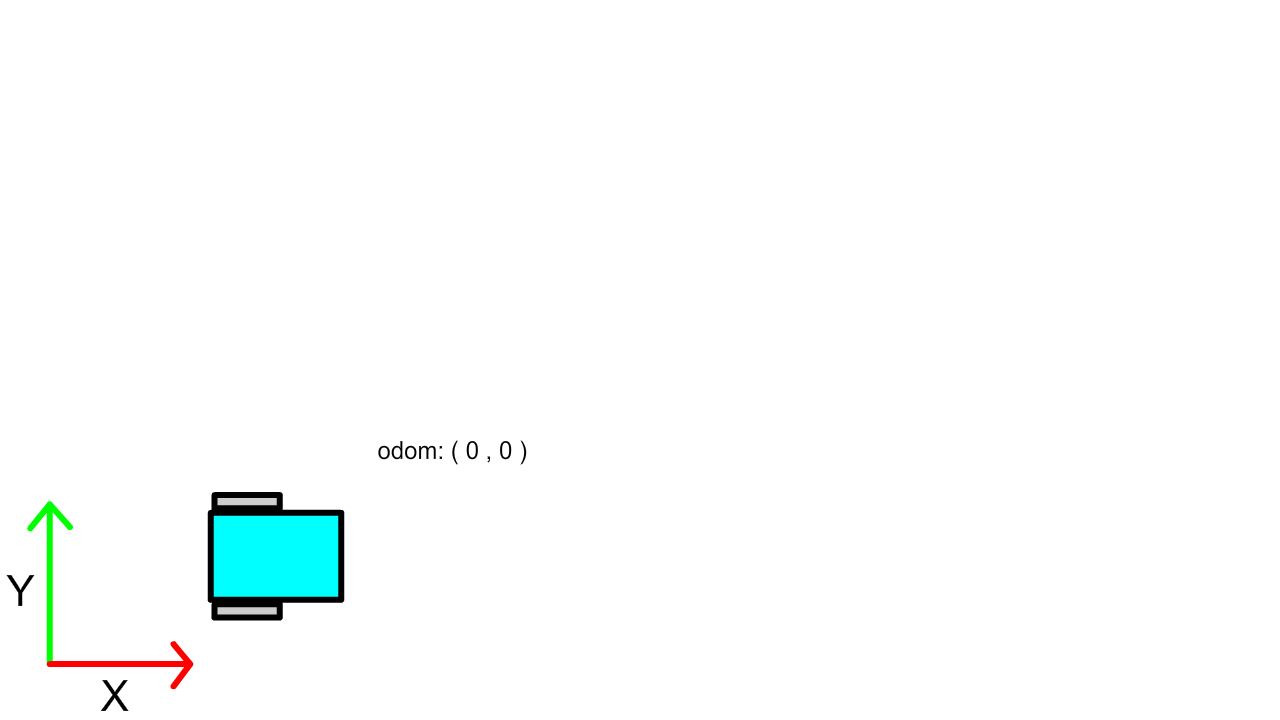

Odometry (odom) is the (x,y) position of where the robot thinks it is on a map

This is often done by measuring how many times the wheels rotate on our robot

First we need to read in our wheel angles and put them into ROS.

Lets make a Node to do this

info

Why not ros2_control?

This guide is designed to be work with hardware setups commonly found in Robomasters. Where there is a often a Raspberry Pi / Jetson, and a micro controller such as an Arduino / Robomasters type-c boards. Most of the controls code lives on the micro controller so it is more convent for the Robomasters teams to not use ros2_control and simply send commands over a serial interface.

If you are curious about ros2_control Articulate Robotics has a very good guide on it:

ros2_control guide

Publishing wheel angles to `/joint_states`

Creating custom node

”👾”

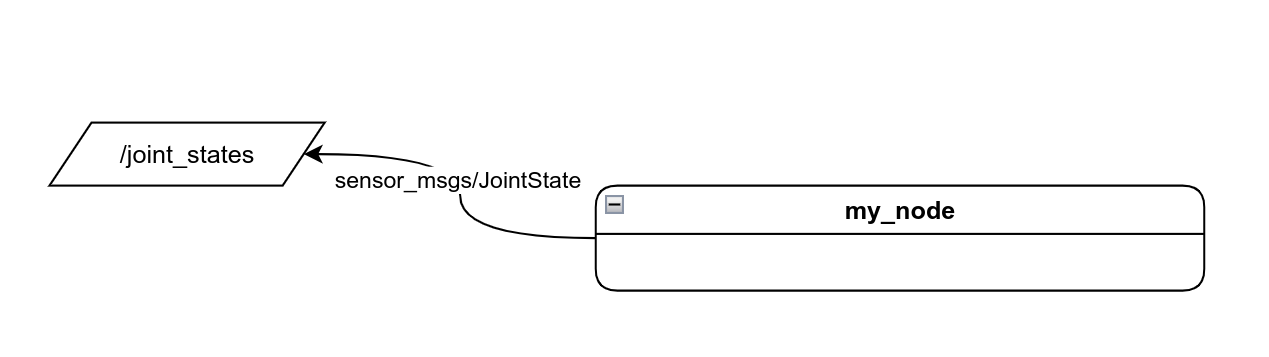

Outputs:

Name	Type
`/joint_states`	sensor_msg/JointState

description:

reads in the physical robot’s wheel angles and publishes them to /joint_state

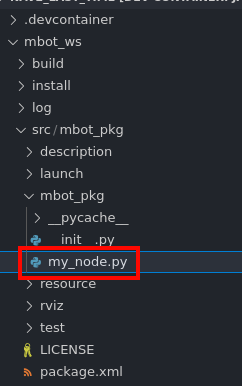

There should be a file mbot_pkg/mbot_pkg/my_node.py

This is where we are going to create our custom node to read in wheel angles

First we need to publish to topic /joint_states so I will copy the example publisher code from the Publisher and Subscriber guide:

  import rclpy
from rclpy.node import Node

from std_msgs.msg import String


class MinimalPublisher(Node):

    def __init__(self):
        super().__init__('minimal_publisher')
        self.publisher_ = self.create_publisher(String, 'my_topic', 10) # publisher obj
        self.timer = self.create_timer(0.05, self.timer_callback) # calls timer_callback() every 0.5 sec

		# gets called every 0.05 seconds
    def timer_callback(self):
        msg = String()                                      # create msg object
        msg.data = 'Hello World'                            # fill it with data
        self.publisher_.publish(msg)                        # publish the message
        self.get_logger().info('Publishing: ' + msg.data)   # print msg


def main():
    rclpy.init()                            # initializes the rclpy library

    minimal_publisher = MinimalPublisher()  # creates our MinimalPublisher object

    rclpy.spin(minimal_publisher)           # causes it to loop forever

    minimal_publisher.destroy_node()        # Destroy the node explicitly
    rclpy.shutdown()


if __name__ == '__main__':
    main()

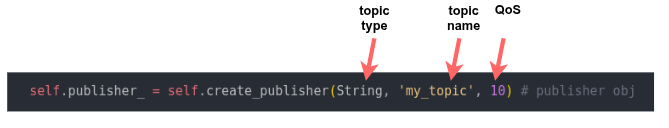

Here is how the basic publisher object works

We need to change the publisher topic type from String to sensor_msg/JointState and where it’s publishing too. Let us also import JointState type and some stuff we will use later.

  import rclpy
from rclpy.node import Node

from sensor_msgs.msg import JointState
from geometry_msgs.msg import *
from tf2_ros.transform_broadcaster import TransformBroadcaster
from tf_transformations import quaternion_from_euler
from math import cos, sin
from nav_msgs.msg import Odometry, Path

class MinimalPublisher(Node):
    def __init__(self):
        super().__init__('minimal_publisher')
        self.publisher_ = self.create_publisher(JointState, 'joint_states', 10)
        self.timer = self.create_timer(0.05, self.timer_callback)

		# gets called every 0.05 seconds
    def timer_callback(self):
			...

To find out how the JointState message is formatted we can run these two commands in two different terminals

  ros2 launch mbot_pkg display.launch.py

  ros2 topic echo /joint_states

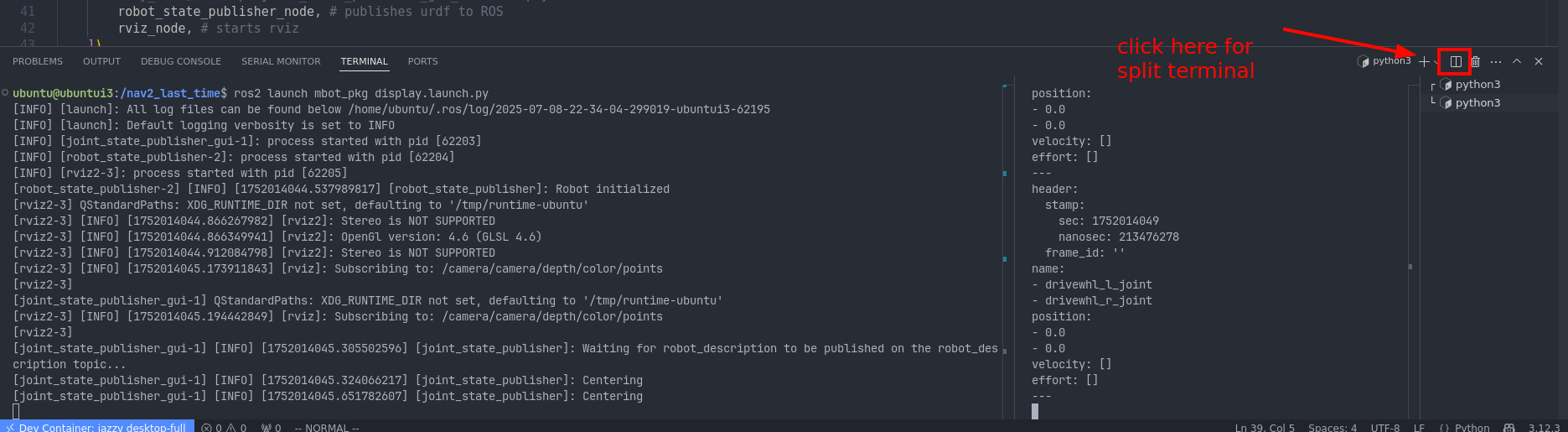

Output:

the ros2 topic echo /joint_states command showed what the joint_state_publisher_gui_node is publishing.

official sensor_msg/JointState docs

`sensor_msg/JointState` format:

  header:
  stamp:
    sec: 1751953191
    nanosec: 173816334
  frame_id: ''
name:
- drivewhl_l_joint
- drivewhl_r_joint
position:
- -0.7640353333530374
- -0.25446900494077296
velocity: []
effort: []

we can fill in the fields roughly the same


    # gets called every 0.05 seconds
    def timer_callback(self):
        new_left_wheel_th =  # TODO: reading wheel position goes here
        new_right_wheel_th = # TODO: reading wheel position goes here
        current_time = self.get_clock().now().to_msg()

        # ============ updating URDF wheel joints ====================
        msg = JointState()                                  # create msg object
        msg.header.stamp = current_time                     # fill it with data
        msg.header.frame_id = ''
        msg.name = ["drivewhl_l_joint","drivewhl_r_joint"]
        msg.position = [new_left_wheel_th, new_right_wheel_th]
        msg.velocity = []
        msg.effort = []
        self.publisher_.publish(msg)                        # publish the message
        self.get_logger().info(f'Publishing position {new_left_wheel_th}, {new_right_wheel_th}')       # print msg

warning

REMEMBER TO GET WHEEL POSITION!!

At this point you would most likely read from your Arduino or from the Raspberry Pi’s GPIO.

if you are in Robomasters this will most likely come from the RM_Uart class

Final code:

  import rclpy
from rclpy.node import Node

from sensor_msgs.msg import JointState


class MinimalPublisher(Node):

    def __init__(self):
        super().__init__('minimal_publisher')
        self.publisher_ = self.create_publisher(JointState, 'joint_states', 10)
        self.timer = self.create_timer(0.5, self.timer_callback) # calls timer_callback() every 0.5 sec

    def timer_callback(self):
        current_time = self.get_clock().now().to_msg()
        new_left_wheel_th =  # TODO: reading wheel position goes here
        new_right_wheel_th = # TODO: reading wheel position goes here


        # ============ updating URDF wheel joints ====================
        msg = JointState()                                  # create msg object
        msg.header.stamp = current_time                     # fill it with data
        msg.header.frame_id = ''
        msg.name = ["drivewhl_l_joint","drivewhl_r_joint"]
        msg.position = [new_left_wheel_th, new_right_wheel_th]
        msg.velocity = []
        msg.effort = []
        self.publisher_.publish(msg)                        # publish the message
        self.get_logger().info(f'Publishing position {new_left_wheel_th}, {new_right_wheel_th}')       # print msg


def main():
    rclpy.init()                            # initializes the rclpy library

    minimal_publisher = MinimalPublisher()  # creates our MinimalPublisher object

    rclpy.spin(minimal_publisher)           # causes it to loop forever

    minimal_publisher.destroy_node()        # Destroy the node explicitly
    rclpy.shutdown()


if __name__ == '__main__':
    main()

At this point plug in your robot to you laptop/computer

lf on WSL here is a guide for Connecting USB devices

info

If you are developing in a dev container you have to forward the USB port into the dev container.

in the file .devcontainer/devcontainer.json add this line into the runArgs: array

"--device=/dev/tty<your device>", to find what your device is outside of your devcontainer, probably in your WSL shell, run ls /dev/tty* to find which tty device to use. If you are not sure unplug and re run the command to see the difference.

you may also need to run sudo chmod 777 /dev/tty<your device> to use the device depending on how your hardware is setup

What if I don’t have a robot

We can fake the wheel values by doing this

      def __init__(self):
        super().__init__('minimal_publisher')
        self.publisher_ = self.create_publisher(JointState, 'joint_states', 10)
        self.timer = self.create_timer(0.05, self.timer_callback)

        self.left_wheel_th = 0 # left wheel angle
        self.right_wheel_th = 0 # right wheel angle

    # gets called every 0.05 seconds
    def timer_callback(self):
        new_left_wheel_th = self.left_wheel_th+0.01 # faking wheel position
        new_right_wheel_th = self.right_wheel_th+0.02 # faking wheel position

        current_time = self.get_clock().now().to_msg()

        ...

        # updating wheel position
        self.left_wheel_th = new_left_wheel_th
        self.right_wheel_th = new_right_wheel_th

This makes it so we just increment the wheel position every period

Testing my_node

run:

  ros2 run mbot_pkg my_node

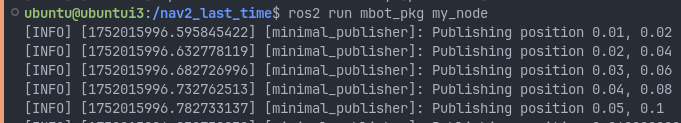

output:

If the printout matches the position you move the wheels then the wheel position has successfully been moved into ROS. 🎉

Lets update our launch file add this into our current system

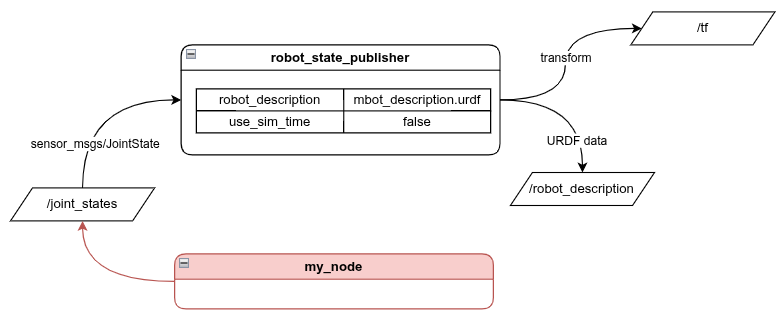

New Node diagram

comment out joint_state_publisher_gui_node in the launch file

  return LaunchDescription([
		# joint_state_publisher_gui_node, # debugs urdf joints
		robot_state_publisher_node,
		rviz_node,
])

in two different terminals run

  ros2 launch mbot_pkg display.launch.py

  ros2 run mbot_pkg my_node

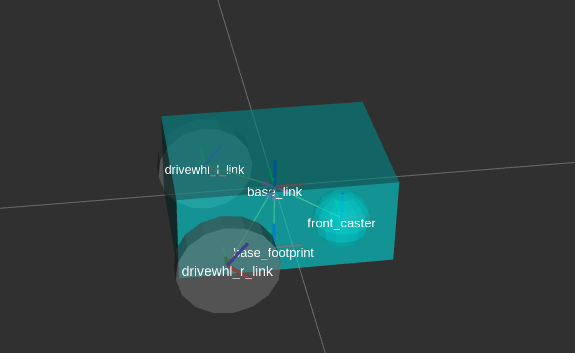

rviz result:

moving the robot should also update the rviz model

Updating launch file

Lets add my_node to the launch file

  		...

		# ros2 run mbot_pkg my_node
    my_node = Node( # launches our custom node
        package='mbot_pkg',
        executable='my_node'
    )

    return LaunchDescription([
        # joint_state_publisher_gui_node, # debugs urdf joints
        my_node, # swaps joint_state_publisher_gui_node for physical robot
        robot_state_publisher_node, # publishes urdf to ROS
        rviz_node, # starts rviz
    ])

Now you only need ros2 launch mbot_pkg display.launch.py to run the whole setup

Converting wheel angles to x,y (adding odom frame)

Now that we have the wheel angles lets get the (x, y) of the robot like in the GIF at the top of this guide

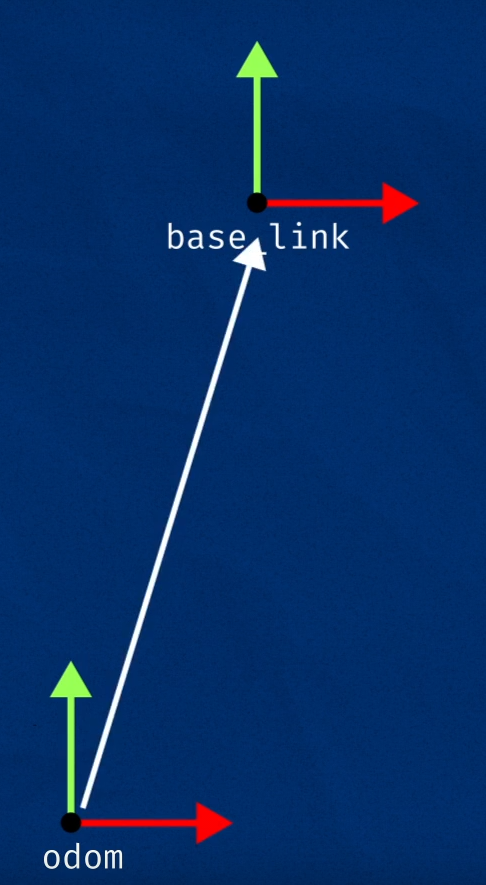

we do this though the odom => base_link transform

image courtesy of Articulate Robotics

why odom => base_link???

This transform is required as in input to Nav2

Will see it be used later when Nav2 performs path finding

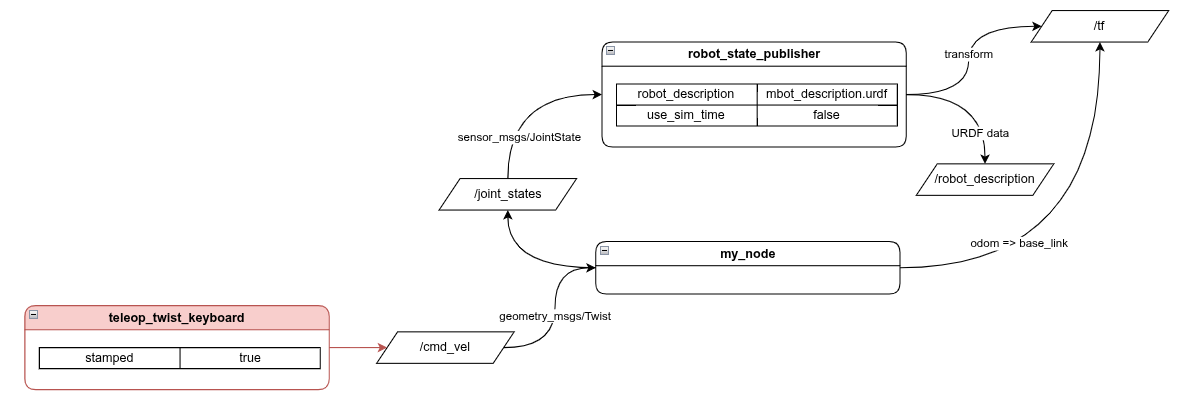

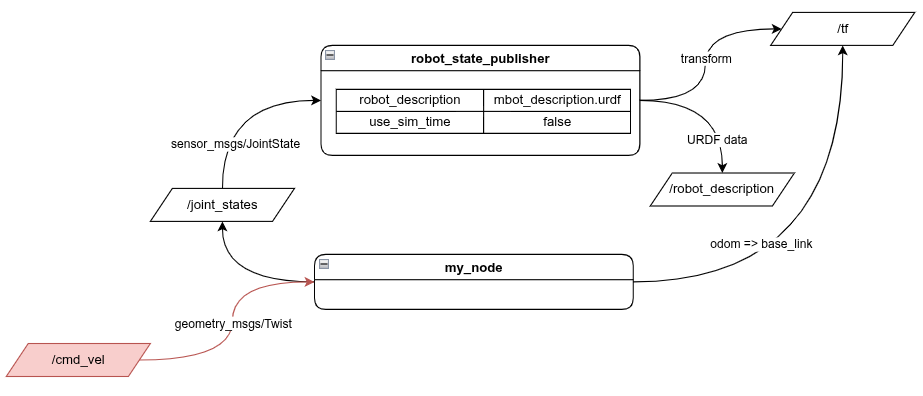

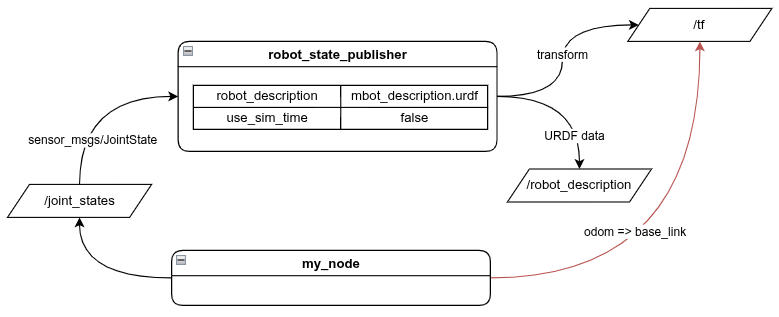

New Node diagram

Here is the Theory Converting wheel angles to x,y

icckinematics.pdf

TODO:

But for those who just want the equations/functions I wrote a calculate_position() function that converts wheel angles to x,y

calculate_position() just takes in:

current left & right wheel angles
most recent measured left & right wheel angles
robot’s rotation (theta)

and returns the (x,y)

add this above the MinimalPublisher class

  def calculate_position(new_right_wheel_th, right_angle, new_left_wheel_th, left_angle, th):
    """retruns the robots x,y offset given wheel angles

    Args:
        new_right_wheel_th (float): new mesured right wheel angle
        right_angle (float): previous right wheel angle
        new_float_wheel_th (float): new mesured left wheel angle
        left_angle (float): previous left wheel angle
        th (float): robot chassis rotation

    Returns:
        (float, float): x,y offset
    """

    WHEEL_RADIUS = 0.10
    WHEEL_SEPARATION = 0.31+2*0.025 # body + wheel gap (there are 2 wheels)

    # convert rotation to linear distance
    dr = (new_right_wheel_th - right_angle)*WHEEL_RADIUS
    dl = (new_left_wheel_th - left_angle)*WHEEL_RADIUS

    # calcuate movement
    offset = (dr + dl) / 2
    delta_th = (dr - dl) / WHEEL_SEPARATION

    # extract componates
    relative_dx = offset*cos(delta_th)
    relative_dy = offset*sin(delta_th)

    #rotation matrix
    delta_x = relative_dx*cos(th) - relative_dy*sin(th)
    delta_y = relative_dx*sin(th) + relative_dy*cos(th)
    return (delta_x,delta_y,delta_th)

Next lets make some variables to store the wheel angle, x, y, and theta (robot rotation)

  def calculate_position(new_right_wheel_th, right_angle, new_left_wheel_th, left_angle, th):
   ...

class MinimalPublisher(Node):
    def __init__(self):
        super().__init__('minimal_publisher')
        self.publisher_ = self.create_publisher(JointState, 'joint_states', 10)
        self.timer = self.create_timer(0.05, self.timer_callback)

        self.left_wheel_th = 0 # left wheel angle
        self.right_wheel_th = 0 # right wheel angle

        self.x = 0.0
        self.y = 0.0
        self.th = 0.0 # theta

   def timer_callback(self):
        new_left_wheel_th =  # TODO: reading wheel position goes here
        new_right_wheel_th = # TODO: reading wheel position goes here
        current_time = self.get_clock().now().to_msg()

        # ============ updating URDF wheel joints ====================
				...

        # ============ publishing odom transform ====================

        # calcuate how much the robot moved and rotated
        delta_x, delta_y, delta_th = calculate_position(new_right_wheel_th, self.right_wheel_th, new_left_wheel_th, self.left_wheel_th, self.th)

        # update position
        self.x += delta_x
        self.y += delta_y
        self.th += delta_th

        self.get_logger().info(f'x: {self.x} y: {self.y}')

        # updating wheel position
        self.left_wheel_th = new_left_wheel_th
        self.right_wheel_th = new_right_wheel_th

now in timer_callback() lets broadcast the odom => base_link tf frame

first create a tf broadcaster object

   class MinimalPublisher(Node):
    def __init__(self):
        super().__init__('minimal_publisher')
        self.publisher_ = self.create_publisher(JointState, 'joint_states', 10)
        self.timer = self.create_timer(0.05, self.timer_callback)

        self.left_wheel_th = 0 # left wheel angle
        self.right_wheel_th = 0 # right wheel angle

        self.x = 0.0
        self.y = 0.0
        self.th = 0.0 # theta

        self.odom_brodcaster = TransformBroadcaster(self) # obj to broadcasts the odom tf frame

Then create a message and put self.x and self.y inside

      def timer_callback(self):
        current_time = self.get_clock().now().to_msg()

				...

        # ============ publishing odom transform ====================

        # calcuate how much the robot moved and rotated
        delta_x, delta_y, delta_th = calculate_position(new_right_wheel_th, self.right_wheel_th ,new_left_wheel_th, self.right_wheel_th, self.th)

        # update position
        self.x += delta_x
        self.y += delta_y
        self.th += delta_th

        self.get_logger().info(f'x: {self.x} y: {self.y}')

        # updating wheel position
        self.left_wheel_th = new_left_wheel_th
        self.right_wheel_th = new_right_wheel_th

        # create and publish transform message
        odom_trans = TransformStamped()
        odom_trans.header.stamp = current_time
        odom_trans.header.frame_id = "odom"
        odom_trans.child_frame_id = "base_link"
        odom_trans.transform.translation.x = self.x
        odom_trans.transform.translation.y = self.y
        odom_trans.transform.translation.z = 0.0
        q = quaternion_from_euler(0, 0, self.th)
        odom_trans.transform.rotation = Quaternion(x=q[0], y=q[1], z=q[2], w=q[3])
        self.odom_brodcaster.sendTransform(odom_trans)

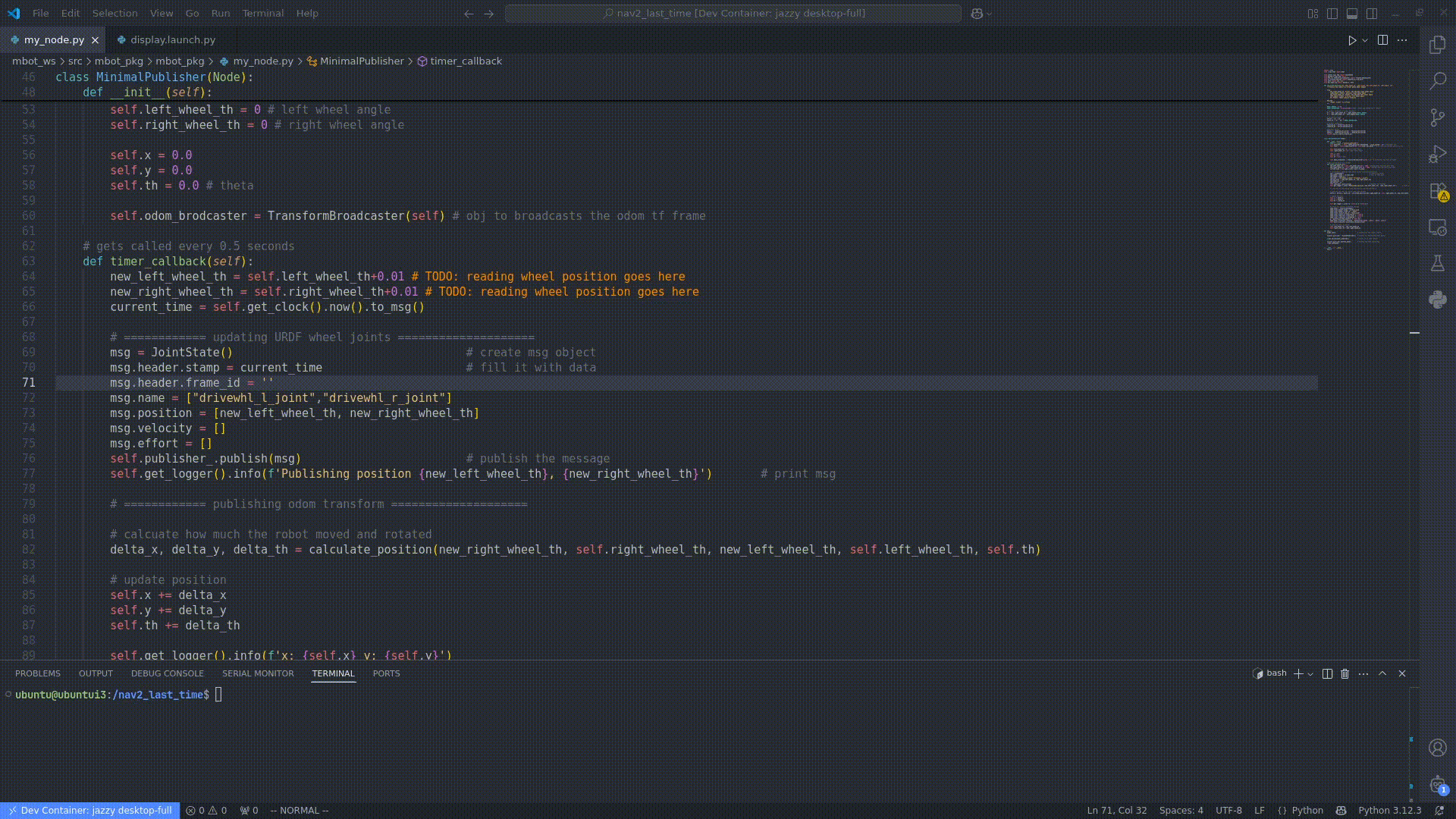

Running code

  ros2 launch mbot_pkg display.launch.py

Result:

Piloting the robot

We are able to track the robot in ROS so lets try having ROS move the robot

we do this by subscribing to the /cmd_vel topic

New Node diagram

updating code

Subscriber guide can be found here

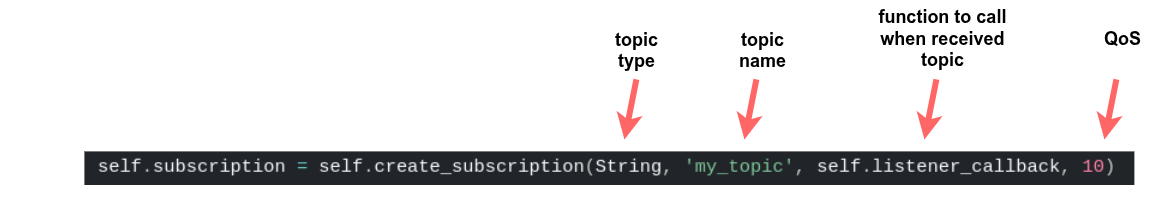

To make a subscriber we make a subscriber object:


class MinimalPublisher(Node):

    def __init__(self):
        super().__init__('minimal_publisher')
        self.publisher_ = self.create_publisher(JointState, 'joint_states', 10)
        self.timer = self.create_timer(0.05, self.timer_callback)

        self.left_wheel_th = 0 # left wheel angle
        self.right_wheel_th = 0 # right wheel angle

        self.x = 0.0
        self.y = 0.0
        self.th = 0.0 # theta

        self.odom_brodcaster = TransformBroadcaster(self)

        self.subscription = self.create_subscription(TwistStamped, 'cmd_vel', self.listener_callback, 10)


    def timer_callback(self):
				...

    def listener_callback(self, msg: TwistStamped):
        self.get_logger().info(f'{msg}')

Now we just need some way to send drive commands to /cmd_vel

This is where we use telop_twist_keyboard

”👾”

New Node `telop_twist_keyboard`

Outputs:

Name	Type
`/cmd_vel`	geometry_msg/Twist

Params:

Name	Type
`stamped`	bool

description:

Lets you drive your robot with your keyboard

publishes geometry_msg/Twist on the /cmd_vel topic

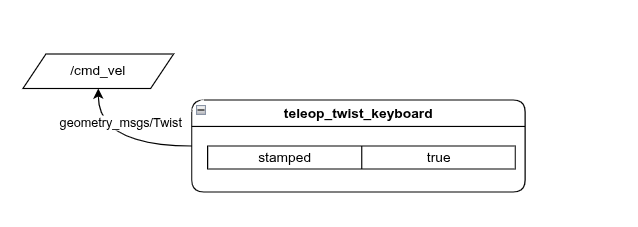

New Node diagram

Running code:

  ros2 launch mbot_pkg display.launch.py

  ros2 run teleop_twist_keyboard teleop_twist_keyboard --ros-args -p stamped:=true

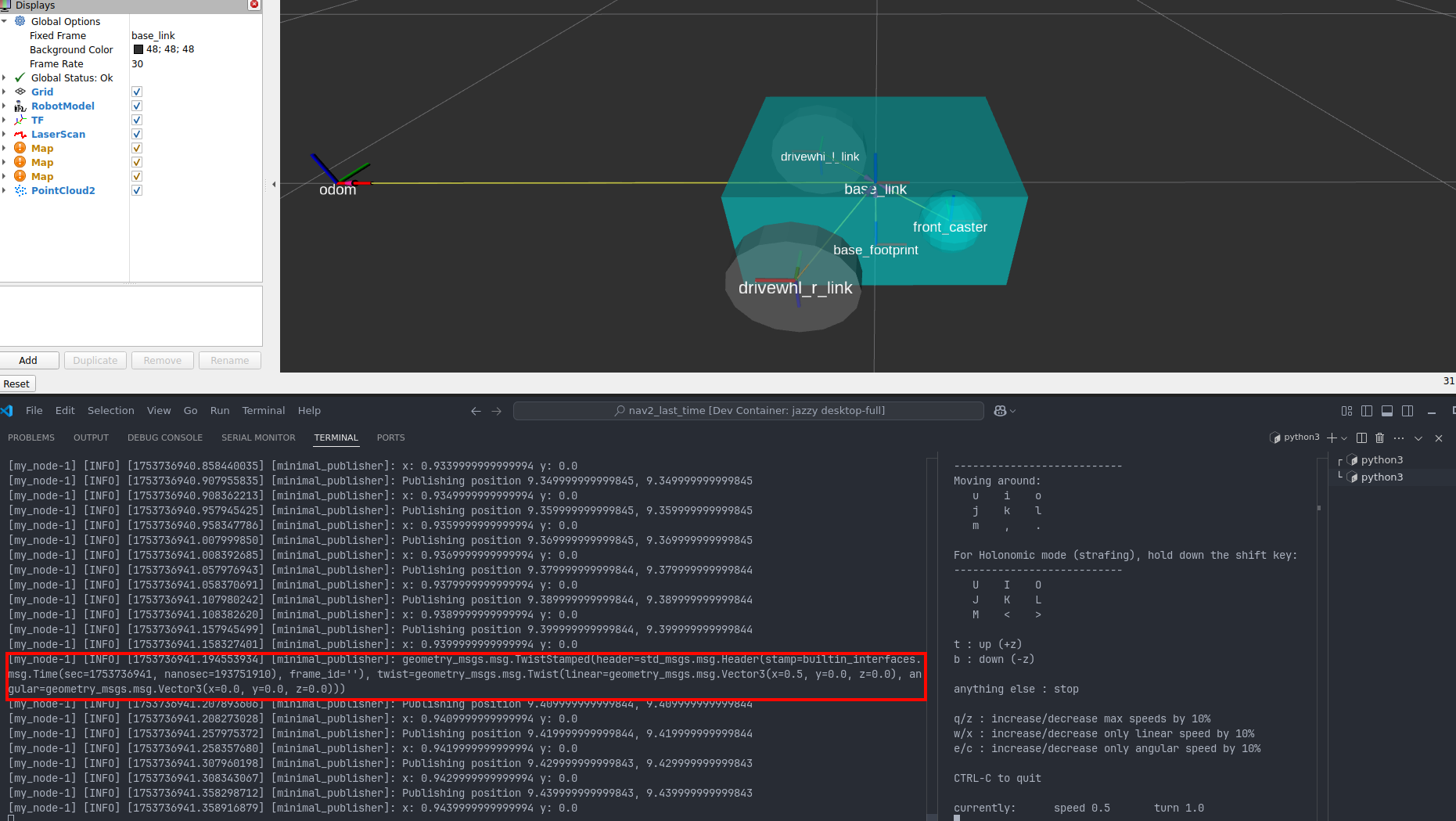

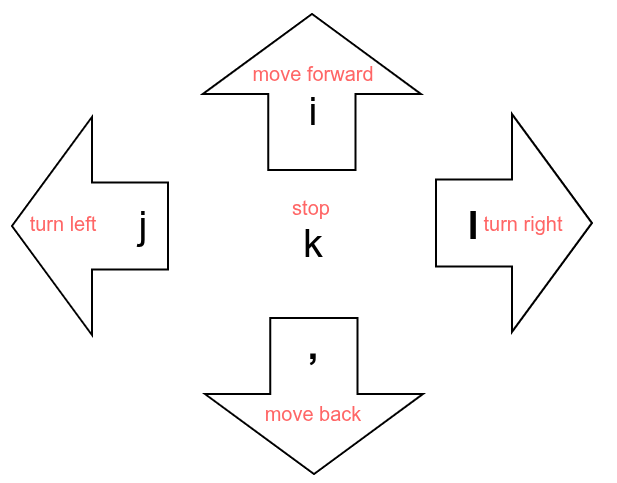

pressing i will send a move forward command:

formatting the print better we can see TwistStamped is made of 3 parts

  geometry_msgs.msg.TwistStamped(
	header=std_msgs.msg.Header(stamp=builtin_interfaces.msg.Time(sec=1752445192, nanosec=279741976), frame_id=''),
	twist=geometry_msgs.msg.Twist(
		linear=geometry_msgs.msg.Vector3(x=0.5, y=0.0, z=0.0),
		angular=geometry_msgs.msg.Vector3(x=0.0, y=0.0, z=0.0)
	)
)

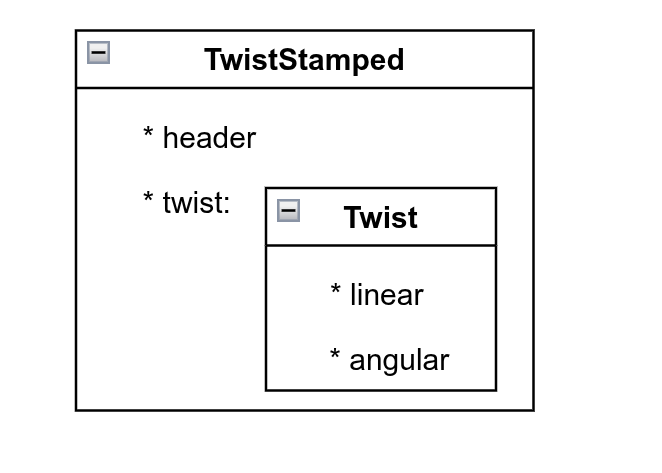

TwistStamped:

header
Twist:
- linear
- angular

TwistStamped official docs

In our code we can just use msg.twist.linear or msg.twist.angular to extract what we need:

      def listener_callback(self, msg: TwistStamped):
        self.get_logger().info(f'from /cmd_vel angular: {msg.twist.angular} linear: {msg.twist.linear}')
        # send msg to robot ...

from there the message can be sent to the robot

Note if you are in Robomasters you will most likely use RM_Uart to send to the type-c

Adding odom topic

The final topic our node needs to publish is the Odometry.

We did just publish that information into /tf with the transform broadcaster.

However, Nav2 still needs it on a separate topic called /odom with type nav_msgs/Odometry

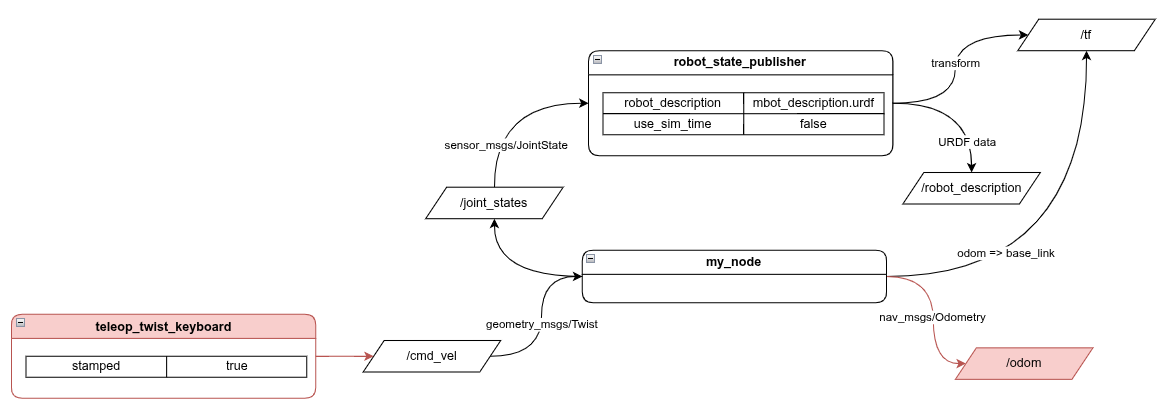

New Node diagram

Again we just need to make a publisher and fill in the nav_msgs/Odometry message format:

  header:
  stamp:
    sec: 1753330401
    nanosec: 859879019
  frame_id: odom
child_frame_id: base_link
pose:
  pose:
    position:
      x: 0.42549007816038587
      y: 0.20845842868953549
      z: 0.0
    orientation:
      x: 0.0
      y: 0.0
      z: 0.43871361044460205
      w: 0.8986269348348412
  covariance:
  - 0.0
    ...
twist:
  twist:
    linear:
      x: 0.0
      y: 0.0
      z: 0.0
    angular:
      x: 0.0
      y: 0.0
      z: 0.0
  covariance:
  - 0.0
    ...


    def __init__(self):
        super().__init__('minimal_publisher')
        self.publisher_ = self.create_publisher(JointState, 'joint_states', 10)

        ...

        self.subscription = self.create_subscription(TwistStamped, 'cmd_vel', self.listener_callback, 10)

        self.odom_publisher = self.create_publisher(Odometry, '/odom', 10)


    def timer_callback(self):
        ...

        odom_msg = Odometry()
        odom_msg.header.stamp = current_time
        odom_msg.header.frame_id = 'odom'
        odom_msg.child_frame_id = 'base_link'
        odom_msg.pose.pose.position.x = float(self.x)
        odom_msg.pose.pose.position.y = float(self.y)
        odom_msg.pose.pose.position.z = 0.0
        odom_msg.twist.twist.linear.x = 0.0#float(vx)
        odom_msg.twist.twist.linear.y = 0.0#float(vy)
        odom_msg.twist.twist.angular.z = 0.0
        odom_msg.pose.pose.orientation = Quaternion(x=q[0], y=q[1], z=q[2], w=q[3])
        self.odom_publisher.publish(odom_msg)

Final code

  import rclpy
from rclpy.node import Node

from sensor_msgs.msg import JointState
from geometry_msgs.msg import *
from tf2_ros.transform_broadcaster import TransformBroadcaster
from tf_transformations import quaternion_from_euler
from math import cos, sin


def calculate_position(new_right_wheel_th, right_angle, new_left_wheel_th, left_angle, th):
    """retruns the robots x,y offset given wheel angles

    Args:
        new_right_wheel_th (float): new mesured right wheel angle
        right_angle (float): previous right wheel angle
        new_float_wheel_th (float): new mesured left wheel angle
        left_angle (float): previous left wheel angle
        th (float): robot chassis rotation

    Returns:
        (float, float): x,y offset
    """

    WHEEL_RADIUS = 0.10
    WHEEL_SEPARATION = 0.31+2*0.025 # body + wheel gap (there are 2 wheels)

    # convert rotation to linear distance
    dr = (new_right_wheel_th - right_angle)*WHEEL_RADIUS
    dl = (new_left_wheel_th - left_angle)*WHEEL_RADIUS

    # calcuate movement
    offset = (dr + dl) / 2
    delta_th = (dr - dl) / WHEEL_SEPARATION

    # extract componates
    relative_dx = offset*cos(delta_th)
    relative_dy = offset*sin(delta_th)

    #rotation matrix
    delta_x = relative_dx*cos(th) - relative_dy*sin(th)
    delta_y = relative_dx*sin(th) + relative_dy*cos(th)
    return (delta_x,delta_y,delta_th)

class MinimalPublisher(Node):

    def __init__(self):
        super().__init__('minimal_publisher')
        self.publisher_ = self.create_publisher(JointState, 'joint_states', 10)
        self.timer = self.create_timer(0.05, self.timer_callback) # calls timer_callback() every 0.05 seconds

        self.left_wheel_th = 0 # left wheel angle
        self.right_wheel_th = 0 # right wheel angle

        self.x = 0.0
        self.y = 0.0
        self.th = 0.0 # theta

        self.odom_brodcaster = TransformBroadcaster(self) # broadcasts the odom tf frame

        # call listener_callback() when /cmd_vel topic recives a msg
        self.subscription = self.create_subscription(TwistStamped, 'cmd_vel', self.listener_callback, 10)


    def timer_callback(self):
        current_time = self.get_clock().now().to_msg()
        new_left_wheel_th = self.left_wheel_th+0.01 # reading motor position goes here
        new_right_wheel_th = self.right_wheel_th+0.02 # reading motor position goes here

        # ============ updating URDF wheel joints ====================
        msg = JointState()                                  # create msg object
        msg.header.stamp = current_time                     # fill it with data
        msg.header.frame_id = ''
        msg.name = ["drivewhl_l_joint","drivewhl_r_joint"]
        msg.position = [new_left_wheel_th, new_right_wheel_th]
        msg.velocity = []
        msg.effort = []
        self.publisher_.publish(msg)                        # publish the message
        self.get_logger().info(f'Publishing position {new_left_wheel_th}, {new_right_wheel_th}')       # print msg

        # ============ publishing odom transform ====================

        # calcuate how much the robot moved and rotated
        delta_x, delta_y, delta_th = calcuate_position(new_right_wheel_th, self.right_wheel_th ,new_left_wheel_th, self.left_wheel_th, self.th)

        # update position
        self.x += delta_x
        self.y += delta_y
        self.th += delta_th

        # create and publish transform message
        odom_trans = TransformStamped()
        odom_trans.header.stamp = current_time
        odom_trans.header.frame_id = "odom"
        odom_trans.child_frame_id = "base_link"
        odom_trans.transform.translation.x = self.x
        odom_trans.transform.translation.y = self.y
        odom_trans.transform.translation.z = 0.0
        q = quaternion_from_euler(0, 0, self.th) # converts theta to quaternions
        odom_trans.transform.rotation = Quaternion(x=q[0], y=q[1], z=q[2], w=q[3])
        self.odom_brodcaster.sendTransform(odom_trans) # publish transform

        # update left and right wheel positions
        self.left_wheel_th = new_left_wheel_th
        self.right_wheel_th = new_right_wheel_th


    # gets called when /cmd_vel topic recives a msg
    def listener_callback(self, msg: TwistStamped):
        self.get_logger().info(f'from /cmd_vel angular: {msg.twist.angular} linear: {msg.twist.linear}')
        # self.get_logger().info(f'{msg}')


def main():
    rclpy.init()                            # initializes the rclpy library

    minimal_publisher = MinimalPublisher()  # creates our MinimalPublisher object

    rclpy.spin(minimal_publisher)           # causes it to loop forever

    minimal_publisher.destroy_node()        # Destroy the node explicitly
    rclpy.shutdown()


if __name__ == '__main__':
    main()

For those who are curious ROS does provide a Localization node which does most of the work we did above:

The localization_node is useful for doing sensor fusion when you also have an IMU or GPS to add to the localization.

Nav2 pt1 URDF

Nav2 pt3 Gazebo setup

Nav2 pt2 Adding Odometry

What is odometry? link

Publishing wheel angles to /joint_states link

Creating custom node link

Outputs: link

description: link

sensor_msg/JointState format: link

REMEMBER TO GET WHEEL POSITION!! link

Testing my_node link

New Node diagram link

rviz result: link

Updating launch file link

Converting wheel angles to x,y (adding odom frame) link

New Node diagram link

Running code link

Piloting the robot link

New Node diagram link

updating code link

New Node telop_twist_keyboard link

Outputs: link

Params: link

description: link

New Node diagram link

Adding odom topic link

New Node diagram link

What is odometry?

Publishing wheel angles to `/joint_states`

Creating custom node

Outputs:

description:

`sensor_msg/JointState` format:

REMEMBER TO GET WHEEL POSITION!!

Testing my_node

New Node diagram

rviz result:

Updating launch file

Converting wheel angles to x,y (adding odom frame)

New Node diagram

Running code

Piloting the robot

New Node diagram

updating code

New Node `telop_twist_keyboard`

Outputs:

Params:

description:

New Node diagram

Adding odom topic

New Node diagram
